Rim – Rear 12″ Chrome, Steel Dirt Bike Rim 1.85×12 Disc Brake / 40D4221CR

79.99$

SKU: 40D4221CR Category:
Description

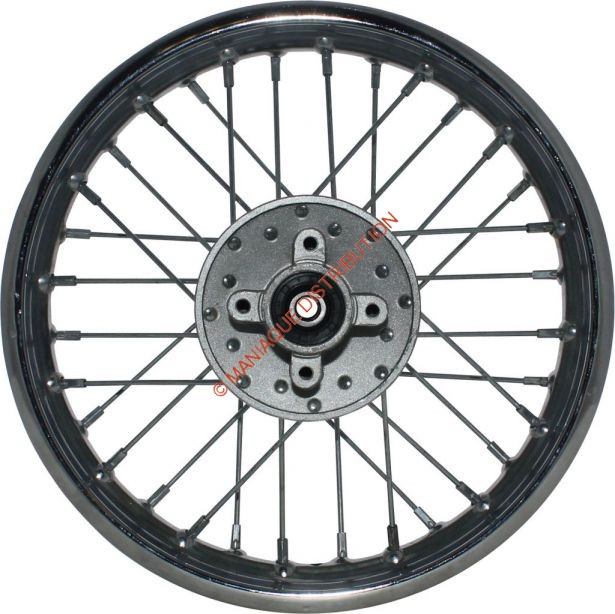

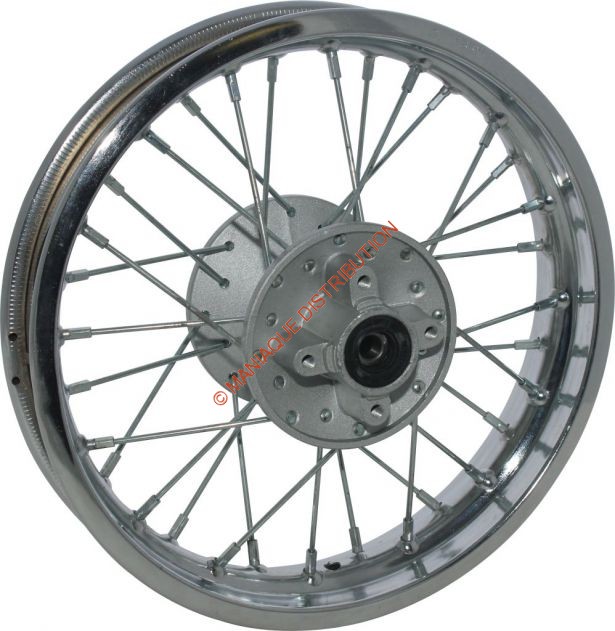

Rear Steel Dirt Bike Rim, 12″ Chrome rim primarily used for 90cc to 140cc dirt bikes. This rim uses a brake disc/rotor. For 12 inch rear tire 80/100-12. Corresponds to matching sprocket 20A1105 and matching brake disks 90A2065 and 90A2070.

  • Placement: Rear
  • Braking System: Disc/Rotor
  • Rim Size: 1.85×12
  • Axle Mount Hole: 12mm
  • Note: Both sides have same mounts
  • Bolt Mount Across (center to center): 47mm
  • Bolt Mount Diagonal (center to center): 65mm
    Associated Parts:

  • 40D1120 Tire – 80/100-12 (3.00-12), 12 Inch, Dirt Bike
  • 40D2120 Inner Tube – 80/100-12 (3.00-12)
  • 20A1105 Sprocket
  • 90A2065 Disc Brake
  • 90A2070 Disc Brake
