Starter – 200cc to 250cc, 9 Tooth / 30A1090


SKU: 30A1090 Category:

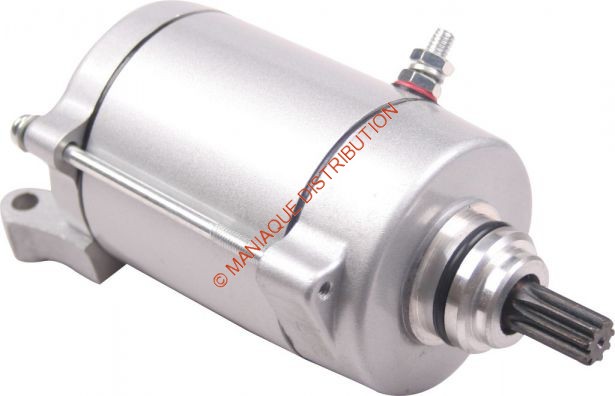

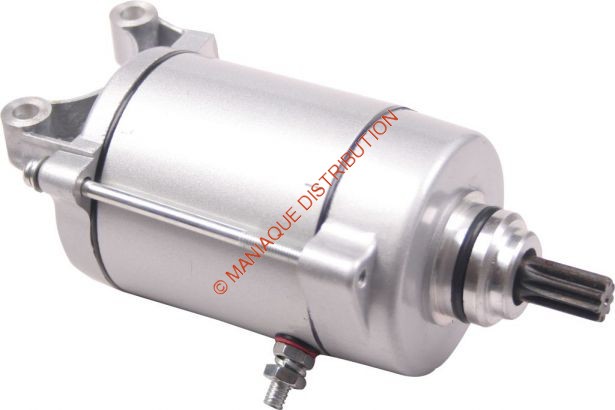

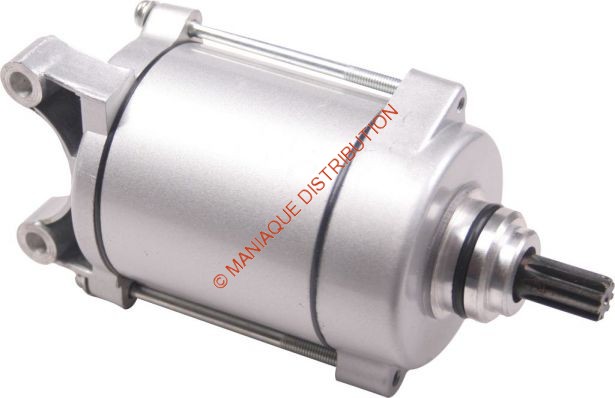

Starter 200cc, 250cc engine. Applies to almost all 200cc to 250cc Chinese engines 9 Teeth. Body of starter is 10cm long with a diameter of 6.5cm. Bolt mount holes have a spacing of 5.3cm center to center. Spline has a diameter of 1cm. Clockwise rotation with 9 splines.

  • Number of Mount Holes: 2
  • Mount Hole Spacing (centre to centre): 5.3cm
  • Body Length: 10cm
  • Body Diameter: 6.5cm
  • Number of Splines: 9
  • Spline Diameter: 1.2cm
  • Rotation: Clockwise
